SPECIFICATION

, contact impedance: less than 80 milli ohm
, insulation resistance: greater than 100
, maximum voltage: 300VAC
, plug rate: 5000 times

MATERIAL

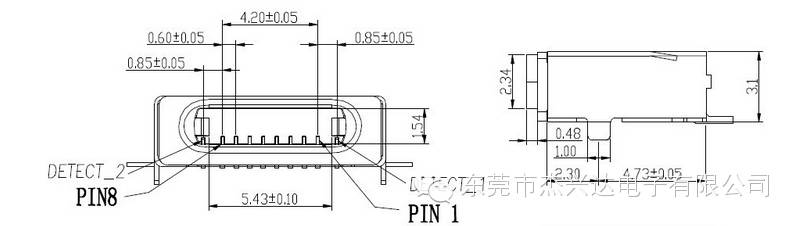

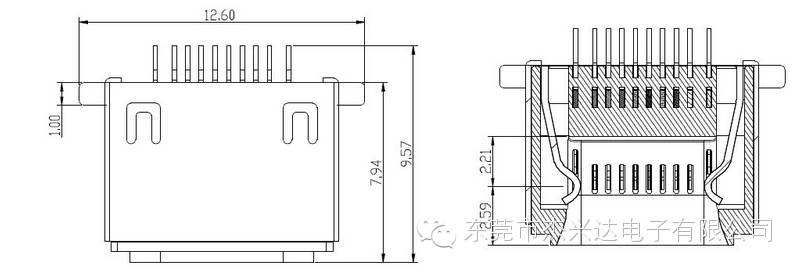

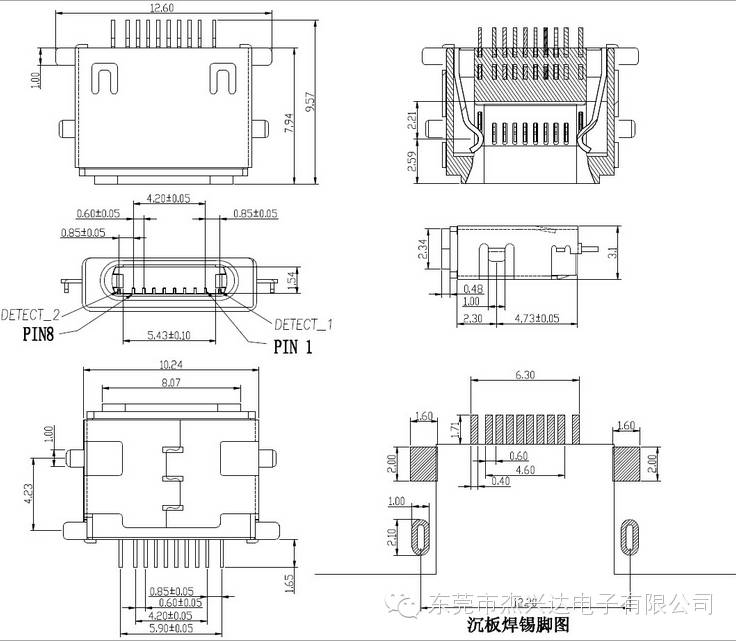

See drawing
STANDARD DATA
Rating current:1A

ELECTRICAL
Insulator resistance: 100M ohms Min. @ 125 VDC
Withstanding voltage: 500 VAC / minute
Contact resistance: 20 m ohms Max.
MECHANICAL
Mating force: 30N(3.1kgf) Max.
Unmating force (Without lock): 4.9N(0.5kgf) Min.
Durability: 10000 cycles Min.
Contact retention force: 4.9N(0.5kgf) Min
